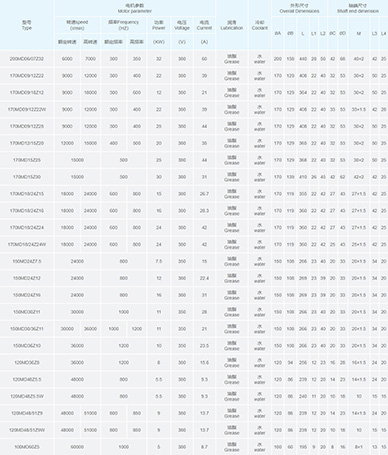

油脂系列
型號
Type |
電機參數
Motor parameter |
潤滑
Lubrication |
冷卻
Coolant |

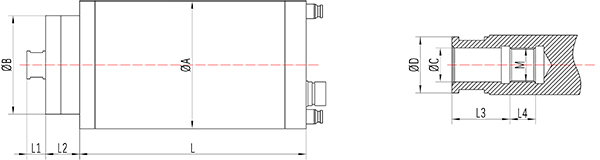

外形尺寸
Overall Dimensions |
軸端尺寸
Shaft end dimension |
轉速speed
(r/min) |
頻率Frequency
(HZ) |
功率
Power |
電壓
Voltage |
電流
Current |
∅A |
∅B |
L |
L1 |
L2 |
∅C |
∅D |
M |
L3 |
L4 |
額定轉速 |
高轉速 |
額定頻率 |
高頻率 |
(KW) |
(V) |
(A) |
200MD06/07Z32 |
6000 |
7000 |
300 |
350 |
32 |
380 |
60 |
油脂
Grease |
水
water |
200 |
158 |
440 |
28 |
50 |
42 |
68 |
40×2 |
42 |
25 |
170MD09/12Z22 |
9000 |
12000 |
300 |
400 |
22 |
380 |
39 |
油脂
Grease |
水
water |
170 |
129 |
408 |
22 |
40 |
32 |
53 |
30×2 |
50 |
25 |
170MD09/18Z12 |
9000 |
18000 |
300 |
600 |
12 |
380 |
21 |
油脂
Grease |
水
water |
170 |
129 |
364 |
22 |
40 |
32 |
53 |
30×2 |
50 |
25 |
170MD09/12Z22W |
9000 |
12000 |
300 |
400 |
22 |
380 |
39 |
油脂
Grease |
水
water |
170 |
129 |
408 |
22 |
40 |
33 |
53 |
33×1.5 |
42 |
28 |
170MD09/12Z25 |
9000 |
12000 |
300 |
400 |
25 |
380 |
44 |
油脂
Grease |
水
water |
170 |
129 |
408 |
22 |
40 |
32 |
53 |
30×2 |
50 |
25 |
170MD12/15Z20 |
12000 |
15000 |
400 |
500 |
20 |
380 |
35 |
油脂
Grease |
水
water |
170 |
129 |
365 |
22 |
40 |
32 |
53 |
30×2 |
50 |
25 |
170MD15Z25 |
15000 |
500 |
25 |
380 |
44 |
油脂
Grease |
水
water |
170 |
129 |
368 |
22 |
40 |
32 |
53 |
30×2 |
50 |
25 |
170MD15Z30 |
15000 |
500 |
30 |
380 |
31 |
油脂
Grease |
水
water |
170 |
139 |
410 |
26 |
45 |
42 |
62 |
42×2 |
42 |
25 |
170MD18/24Z15 |
18000 |
24000 |
600 |
800 |
15 |
380 |
26.7 |
油脂
Grease |
水
water |
170 |
119 |
355 |
22 |
42 |
27 |
43 |
27×1.5 |
42 |
25 |
170MD18/24Z16 |
18000 |
24000 |
600 |
800 |
16 |
380 |
28.3 |
油脂
Grease |
水
water |
170 |
119 |
360 |
22 |
42 |
27 |
43 |
27×1.5 |
42 |
25 |
170MD18/24Z24 |
18000 |
24000 |
600 |
800 |
24 |
380 |
42 |
油脂
Grease |
水
water |
170 |
119 |
360 |
22 |
42 |
27 |
43 |
27×1.5 |
42 |
25 |
170MD18/24Z24W |
18000 |
24000 |
600 |
800 |
24 |
380 |
42 |
油脂
Grease |
水
water |
170 |
119 |
360 |
22 |
42 |
25 |
43 |
25×1.5 |
42 |
25 |
150MD24Z7.5 |
24000 |
800 |
7.5 |
350 |
15 |
油脂
Grease |
水
water |
150 |
108 |
266 |
23 |
40 |
20 |
33 |
20×1.5 |
34 |
20 |
150MD24Z12 |
24000 |
800 |
12 |
380 |
22.4 |
油脂
Grease |
水
water |
150 |
108 |
269 |
23 |
39 |
20 |
33 |
20×1.5 |
34 |
20 |
150MD24Z16 |
24000 |
800 |
16 |
380 |
31 |
油脂
Grease |
水
water |
150 |
108 |
269 |
23 |
39 |
20 |
33 |
20×1.5 |
34 |
20 |
150MD30Z11 |
30000 |
1000 |
11 |
350 |
28 |
油脂
Grease |
水
water |
150 |
108 |
266 |
23 |
40 |
20 |
33 |
20×1.5 |
34 |
20 |
150MD30/36Z11 |
30000 |
36000 |
1000 |
1200 |
11 |
350 |
21 |
油脂
Grease |
水
water |
150 |
108 |
266 |
23 |
40 |
20 |
33 |
20×1.5 |
34 |
20 |
150MD36Z10 |
36000 |
1200 |
10 |
350 |
23.5 |
油脂
Grease |
水
water |
150 |
108 |
266 |
23 |
40 |
20 |
33 |
20×1.5 |
34 |
20 |
120MD36Z8 |
36000 |
1200 |
8 |
380 |
15.6 |
油脂
Grease |
水
water |
120 |
94 |
256 |
12 |
23 |
16 |
28 |
16×1.5 |
24 |
20 |
120MD48Z5.5 |
48000 |
800 |
5.5 |
380 |
9.3 |
油脂
Grease |
水
water |
120 |
86 |
239 |
12 |
20 |
14 |
23 |
14×1.5 |
24 |
20 |
120MD48Z5.5W |
48000 |
800 |
5.5 |
380 |
9.3 |
油脂
Grease |
水
water |
120 |
86 |
240 |
11 |
20 |
10 |
18 |
10 |
15 |
15 |
120MD48/51Z9 |
48000 |
51000 |
800 |
850 |
9 |
380 |
13.7 |
油脂
Grease |
水
water |
120 |
86 |
239 |
12 |
20 |
14 |
23 |
14×1.5 |
24 |
20 |
120MD48/51Z9W |
48000 |
51000 |
800 |
850 |
9 |
380 |
13.7 |
油脂
Grease |
水
water |
120 |
86 |
239 |
12 |
20 |
10 |
18 |
10 |
15 |
15 |
100MD60Z5 |
60000 |
1000 |
5 |
380 |
8.7 |
油脂
Grease |
水
water |
100 |
60 |
195 |
9 |
20 |
8 |
16 |
8×1 |
13 |
15 |

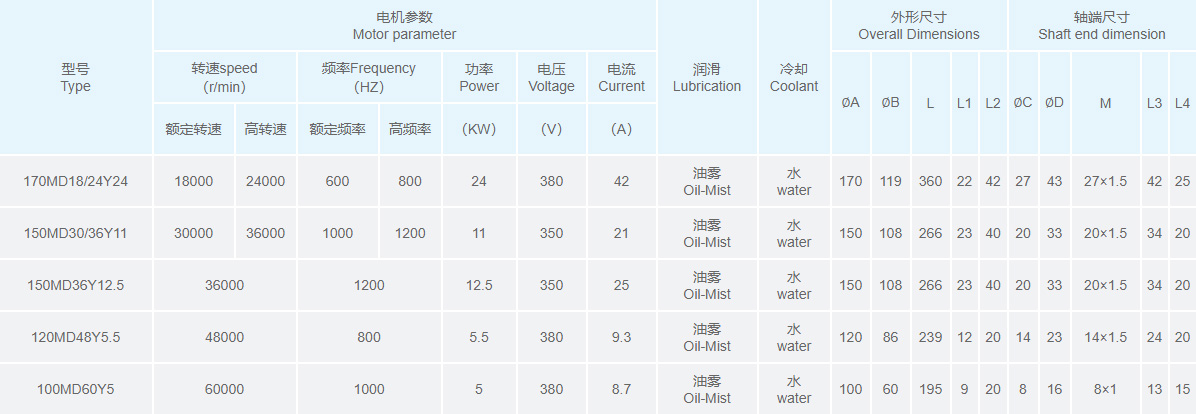

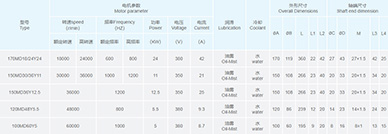

油霧系列
型號
Type |
電機參數
Motor parameter |
潤滑
Lubrication |
冷卻
Coolant |
外形尺寸
Overall Dimensions |
軸端尺寸
Shaft end dimension |
轉速speed
(r/min) |
頻率Frequency
(HZ) |
功率
Power |
電壓
Voltage |
電流
Current |
∅A |
∅B |
L |
L1 |
L2 |
∅C |
∅D |
M |
L3 |
L4 |
額定轉速 |
高轉速 |
額定頻率 |
高頻率 |
(KW) |
(V) |
(A) |
170MD18/24Y24 |
18000 |
24000 |
600 |
800 |
24 |
380 |
42 |
油霧
Oil-Mist |
水
water |
170 |
119 |
360 |
22 |
42 |
27 |
43 |
27×1.5 |
42 |
25 |
150MD30/36Y11 |
30000 |
36000 |
1000 |
1200 |
11 |
350 |
21 |
油霧
Oil-Mist |
水
water |
150 |
108 |
266 |
23 |
40 |
20 |
33 |
20×1.5 |
34 |
20 |
150MD36Y12.5 |
36000 |
1200 |
12.5 |
350 |
25 |
油霧
Oil-Mist |
水
water |
150 |
108 |
266 |
23 |
40 |
20 |
33 |
20×1.5 |
34 |
20 |
120MD48Y5.5 |
48000 |
800 |
5.5 |
380 |
9.3 |
油霧
Oil-Mist |
水
water |
120 |
86 |
239 |
12 |
20 |
14 |
23 |
14×1.5 |
24 |
20 |
100MD60Y5 |
60000 |
1000 |
5 |
380 |
8.7 |
油霧
Oil-Mist |
水
water |
100 |
60 |
195 |
9 |
20 |
8 |
16 |
8×1 |
13 |
15 |
油氣系列
型號
Type |
電機參數
Motor parameter |
潤滑
Lubrication |
冷卻
Coolant |
外形尺寸
Overall Dimensions |
軸端尺寸
Shaft end dimension |
轉速speed
(r/min) |
頻率Frequency
(HZ) |
功率
Power |
電壓
Voltage |
電流
Current |
∅A |
∅B |
L |
L1 |
L2 |
∅C |
∅D |
M |
L3 |
L4 |
額定轉速 |
高轉速 |
額定頻率 |
高頻率 |
(KW) |
(V) |
(A) |
170MD24Q32 |
24000 |
800 |
32 |
380 |
60 |
油氣
Oil-Air |
水
water |
170 |
140 |
386 |
17 |
60 |
36 |
63 |
36×2 |
55 |
30 |
170MD18/24Q24 |
18000 |
24000 |
600 |
800 |
24 |
380 |
42 |
油氣
Oil-Air |
水
water |
170 |
119 |
360 |
22 |
42 |
27 |
43 |
27×1.5 |
42 |
25 |
120MD60Q9 |
60000 |
1000 |
9 |
380 |
13 |
油氣
Oil-Air |
水
water |
120 |
86 |
239 |
11 |
20 |
14 |
23 |
14×1.5 |
24 |
20 |
100MD60Q5 |
60000 |
1000 |
5 |
380 |
8.7 |
油氣
Oil-Air |
水
water |
100 |
60 |
195 |
9 |
20 |
8 |
16 |
8×1 |
13 |
15 |
|
